Gencor Counterflow Drum w/ MAXAM Replacement Drum Shell – RAP-16796

Description

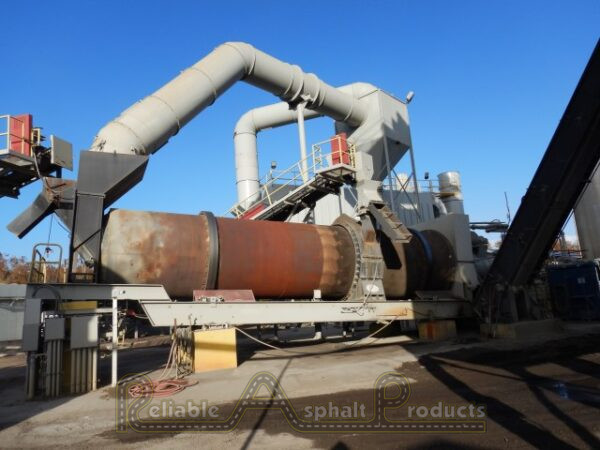

Gencor Counterflow Drum w/ MAXAM Replacement Drum Shell

• Original Model year 1998. Replacement shell estimated in 2010
• 9’6’’ x 48’
• Gencor ultra2 135mbtu burner
• Left hand discharge
• Trunnion drive TXT8 nominal 40hp
• Timken railroad bearings on trunnions
• Gravity feed inlet
• Thickness readings Average 3/8’’ with one area around ¼’’

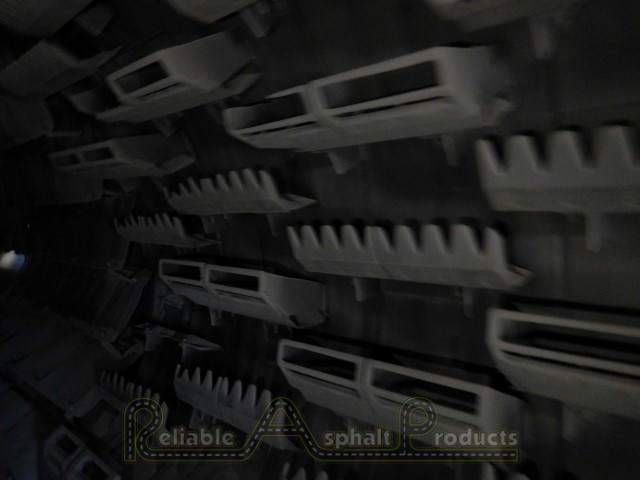

• The shell has been lined on the inside from the inlet to the combustion zone.
• It has also been lined on the outside in the combustion zone
• KO Box and Ductwork is included
