BMG/Dillman Silo System – RAP-17093

Description

BMG/Dillman Silo System

• Nominal total of 450-ton Storage

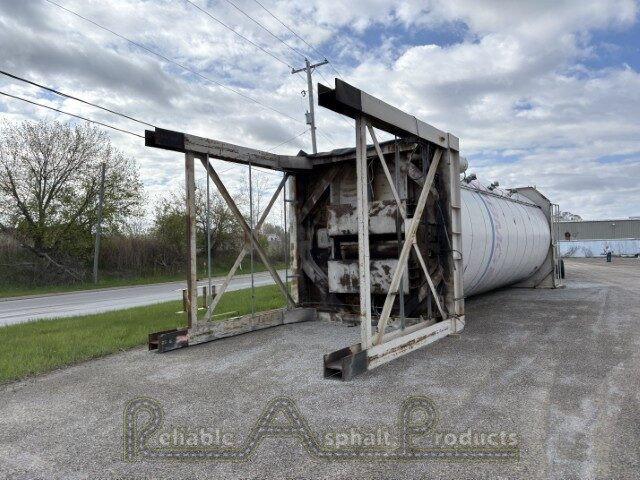

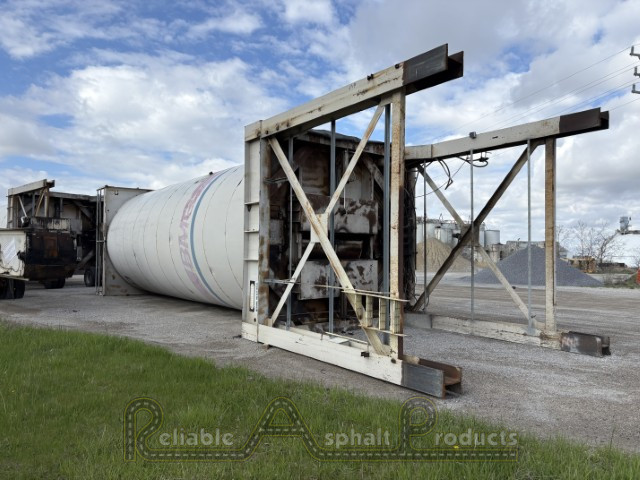

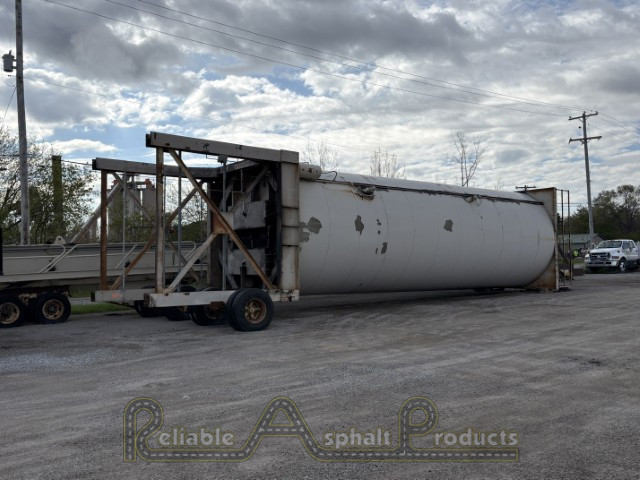

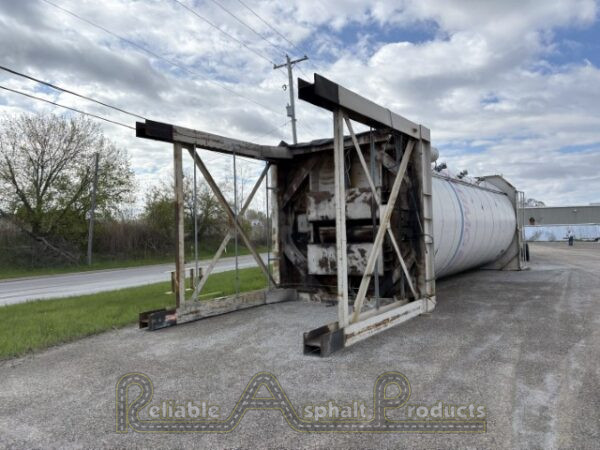

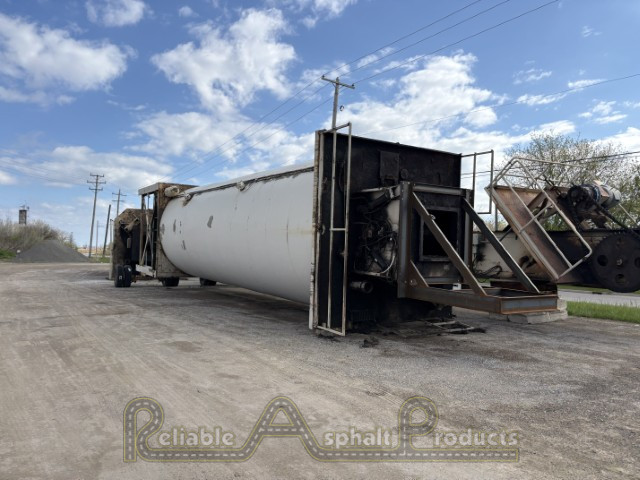

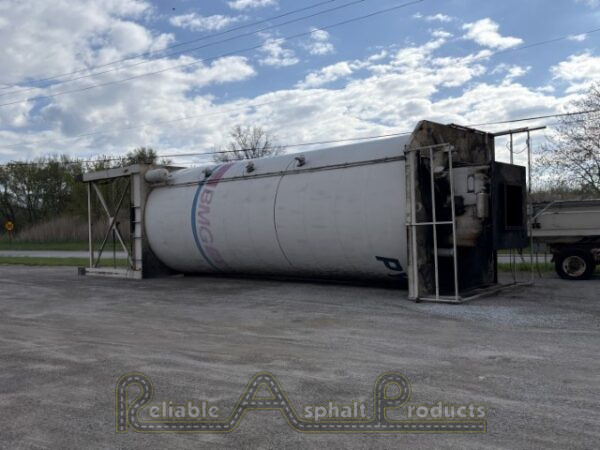

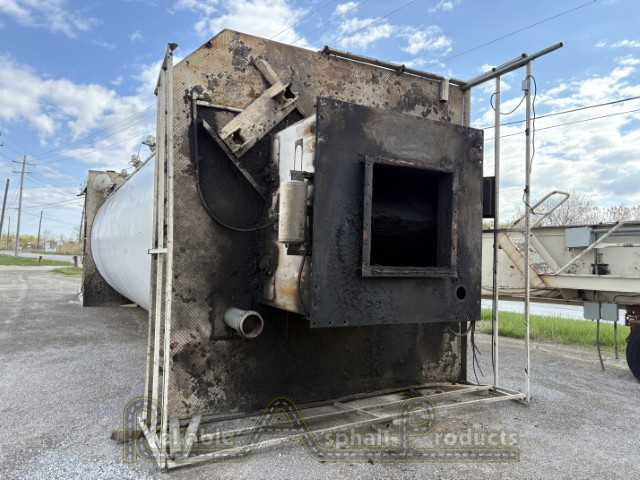

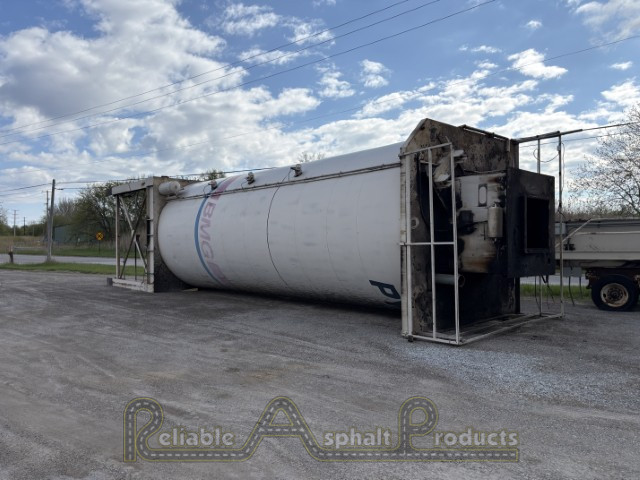

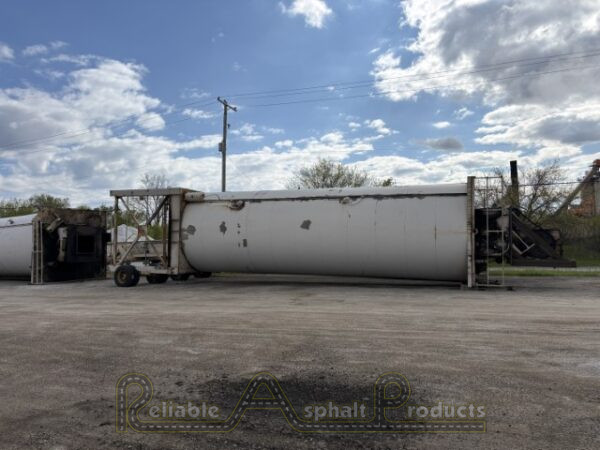

• (1) BMG Nominal 250 Ton Stationary Silo with Batcher

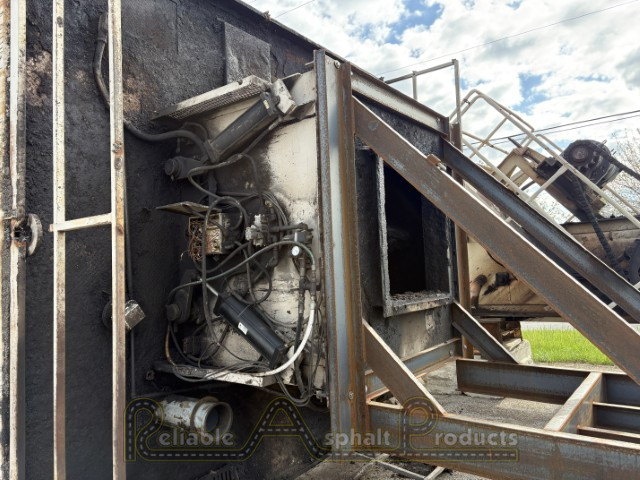

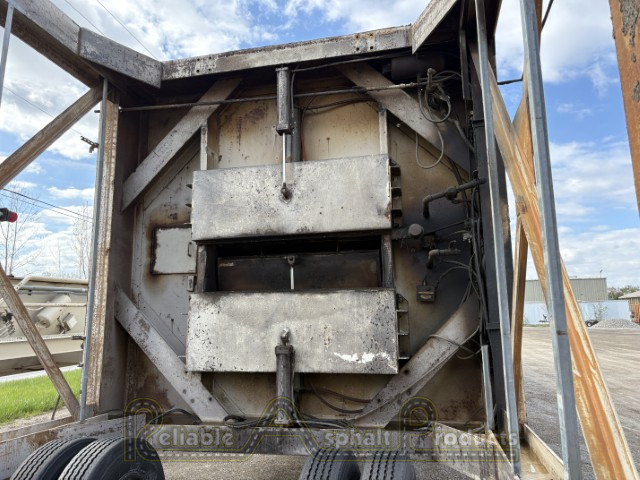

  • Safety gate with electric heat
  • Fully insulated and skinned
  • Cone and tub Liners
  • Oil heat on cone
  • 12′ Drive thru height
• (1) BMG Nominal 200 Ton Stationary Silo with Batcher
  • Safety gate with electric heat
  • Fully insulated and skinned
  • Cone and tub liners
  • Oil heat on cone
  • 14′ Drive thru height
• Dillman 400tph x 94′ Main Drag Slat
  • DE400TPHSCX94-1182-04-NA
  • 2004 Model
  • Equipped w/ Remote Controlled Reject Gate
  • Single-Strand 6″ pitch chain w/ 32″ wide flat bar slats
  • Ceramic Floor Liners
• Dillman Flat Transfer Slat
  • 36″ wide x nom. 19′-6” long
  • Dual Chain, 4″ pitch w/ 33 1/2″ wide slats
  • Cast Floor Liners
